Name: Cut to Length Machine
Brand: SHAOXING SMARTECH MACHINERY MANUFACTURING CO.,LTD.

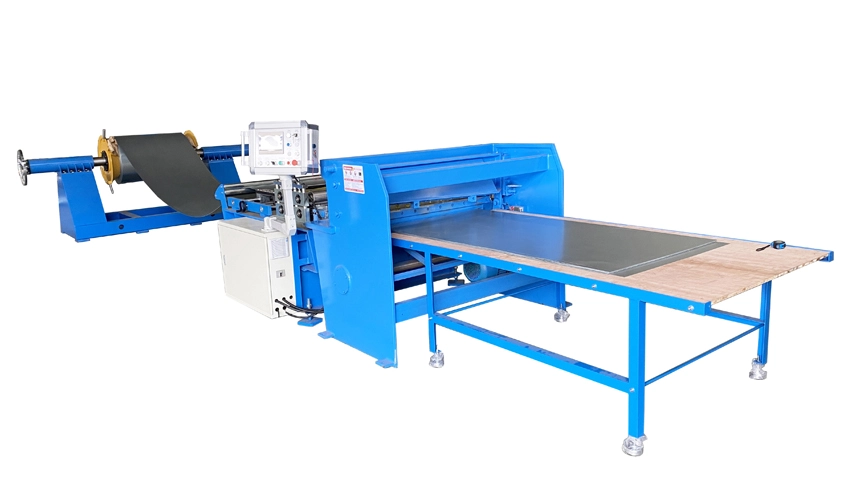

Cut to Length Machine

Smartech Machinery builds simple cut to length machine. This machine is the accessory equipment for roll forming machine or folding machine, which is used to cut coil to get some nonstandard width length sheets. It has many advantages such as low noisy, stable running, simple operation and nice appearance etc.

Use of Cut to Length Machine

Metal coil cut to length machine is an easy operating line for cutting the steel coils to different length of pieces as the program set. The way for using a cutting to length machine is as below:

Lift the steel coil onto decoiler mandreal

Feeding the material to guiding device and convey to the cutting frame

Setting the parameters of cutting length and numbers of blocks

Metal sheets pieces will cut automatically according to parameter setting.

Features of Cut to Length Machine

Steel cutting to length machine from Smartech Machinery consists of feeding, conveying and cutting. And the shaft Material is High grade No.45 carbon wrought steel，which can improve the integrated mechanic feature of the shaft, the material of cutter is Cr12 mould steel with quenched treatment which has strong strength and hardness to cut the coil sheet. It is an automatic machinery which is controlled by PLC.

Specification of Cut to Length Machine

Suitable coil width:	1250mm
Material strength	230-350Mpa
Thickness of material	0.3~1.0mm
Conveying Speed	About 10m/min
Length tolerance	+/_ 1.5mm in 3M in length
Cutting	cutting to length automatically.
Main Motor Power	About 1.5KW
Total Power	About 4.5KW
Power source	380V/3phase/50Hz
