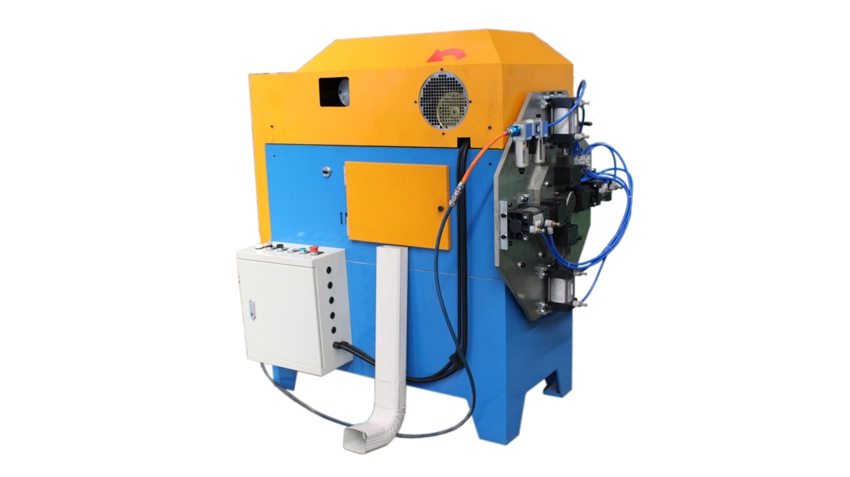

Smartech Machinery downspout roll forming machine consists of decoiler, feeding device, roll forming stations, cutting device and an electric controlling system. You can also require to add pre-cutter, filming device for options. For length of sheets, you can put in the touch screen so the sheets will cut at the set length by control of PLC and Encoder. It is a full automatic and continuous forming machine for water down pipes.
High Efficiency: Capable of producing large quantities of downspouts in a relatively short amount of time.
Consistency: Ensures uniformity and precision in the produced downspouts.
Customization: Can design and manufacture the profile of downspouts as your requirements.
Durability: Built to handle heavy-duty materials and continuous operation.
Cost-Effective: Reduces labor costs and material waste compared to traditional manufacturing methods.
| No | Item | Parameter | Remark | |
| 1 | Suitable Material | Type | PPGI | |
| Width(mm) | 312 | customize | ||
| Thickness(mm) | 0.4-0.5 | customize | ||
| Yield Strength(Mpa) | 230-300 | customize | ||
| 2 | Forming Speed(m/min) | 20 | ||
| 3 | Roller Material | No.45 Steel with Chromeplate | Up to buyer | |
| 4 | Roller Shaft Diameter | 70 | customize | |
| 5 | Cutting Model | Hydraulic Cutting | ||
| 6 | Power source | Type | 380V/3PH/50HZ | Up to buyer |
| Total Power | According to actual design | |||
