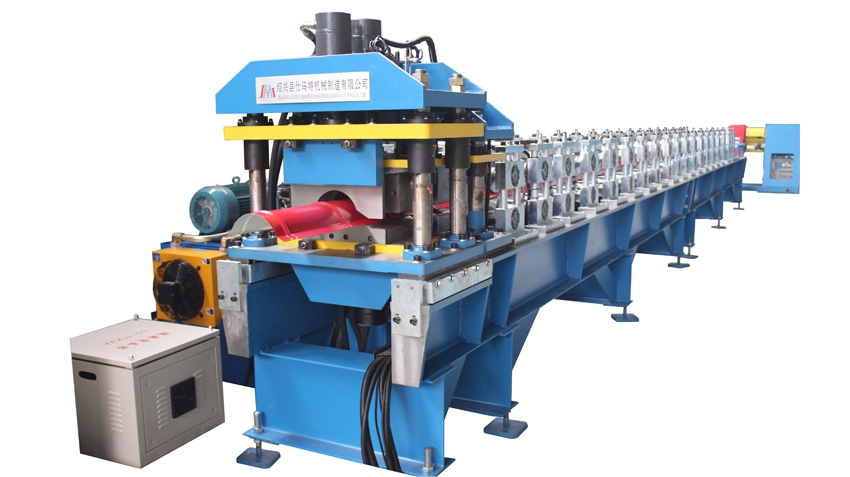

Smartech Machinery ridge cap roll forming machine consists of decoiler, feeding device, roll forming stations, step punching device, cutting device and an electric controlling system. You can also require to add pre-cutter device, filming device, safety guard device and automatic stackers for options. By a specific set of roller stations, the metal ridges can be formed step by step and the punching die is designed and made according to the profile for punching the ridge cap steps. For length of sheets, you can put in the touch screen so the sheets will be cut at the set length by control of PLC and Encoder. It is a full automatic and continuous forming machine for ridge caps.
A ridge cap roll forming machine is a crucial machinery in the roofing industry. Here are some of the key features:1.High Precision Rollers:
Typically made from high-grade steel or chrome-plated to ensure durability and precision;
Advanced Control Systems: With PLC control and touchscreen interfaces for easy operation and monitoring. And you can also choose to get a remote control for easier operation while running the machine;
Step Punching: The step distance of ridge cap can be set in the program and it can be various from 200-350mm.
| No | Item | Parameter | Remark | |
| 1 | Suitable Material | Type | PPGI | |
| Width(mm) | customize | |||
| Thickness(mm) | 0.4-0.5 | |||
| Yield Strength(Mpa) | 230-300 | customize | ||
| 2 | Forming Speed(m/min) | 30 | ||
| 3 | Roller Material | No.45 steel with Chromeplate | Up to buyer | |
| 4 | Roller Shaft Diameter | 70 | customize | |
| 5 | Cutting Model | Hydraulic Cutting | ||
| 6 | Power source | Type | 380V/3PH/50HZ | Up to buyer |
| Total Power | According to actual design | |||
